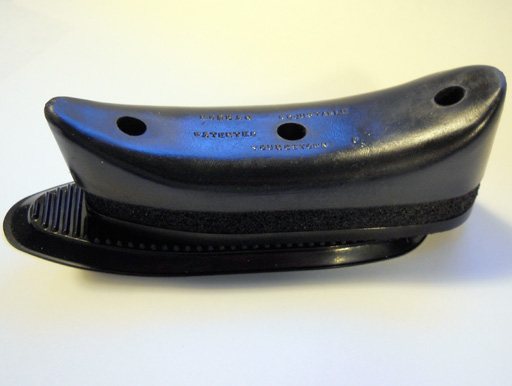

The #4 Curved Recoil Pad, New Version, Curved Adjustable Recoil Pad with black ABS plastic plates. |
|

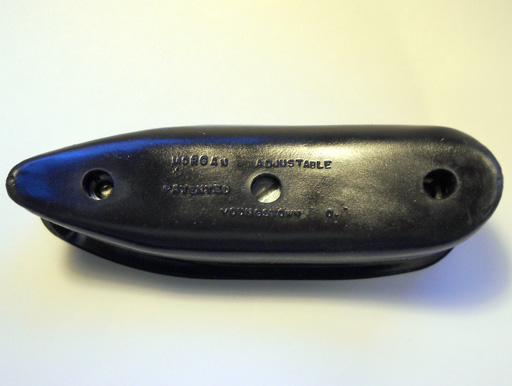

Top view. The center screw adjusts drop and rise. The two screws at left and right have a central locking setscrew and a hollow screw that adjusts the pitch by squeezing the foam recoil pad. |
|

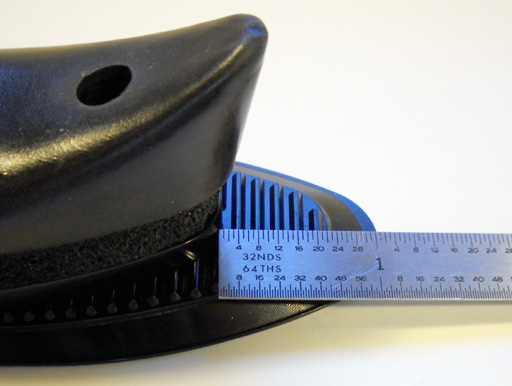

Drop. |
|
About 3/4" Drop. |
|

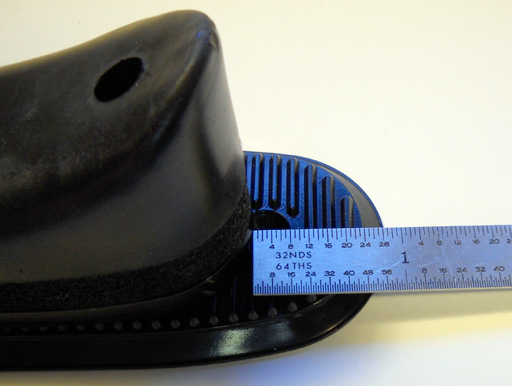

Rise. |
|
About 5/8" Rise. |
|

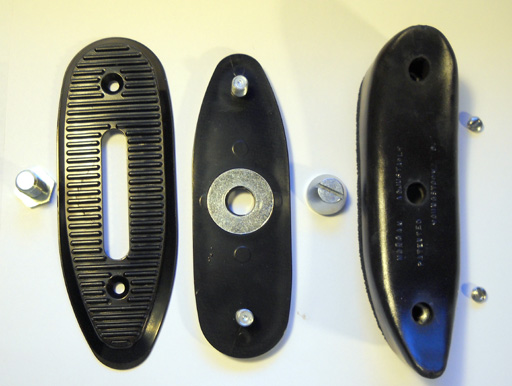

The parts of the pad. |
|

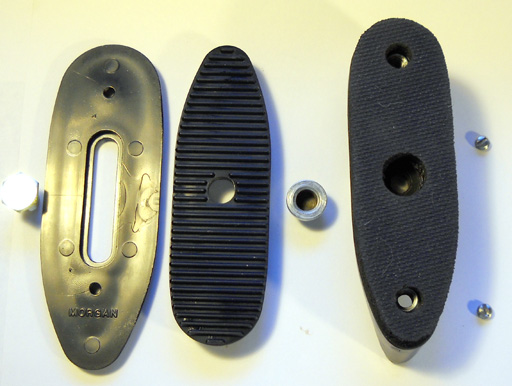

The other side of the parts. |
|

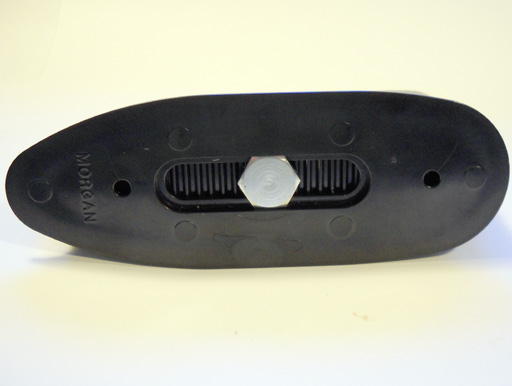

The underside of the assembled pad. |
|

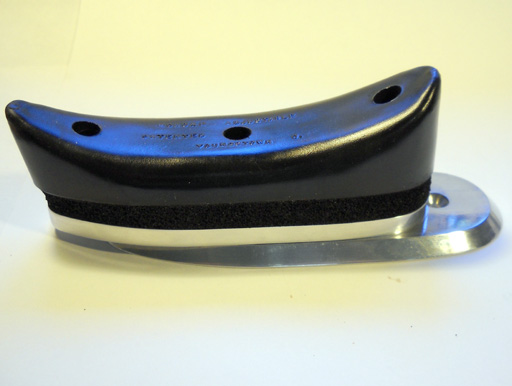

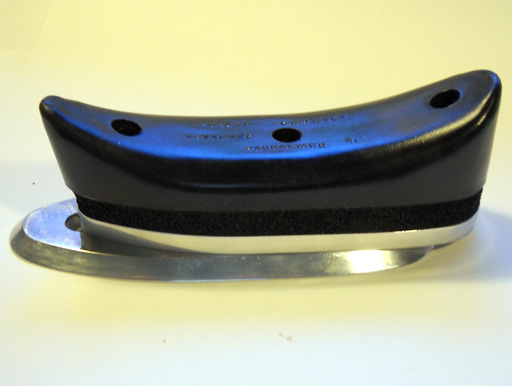

#14 Premium Curved Recoil Pad, Adjustable Recoil Pad with Curved Shoulder Pad and machined aluminum plates. |
|

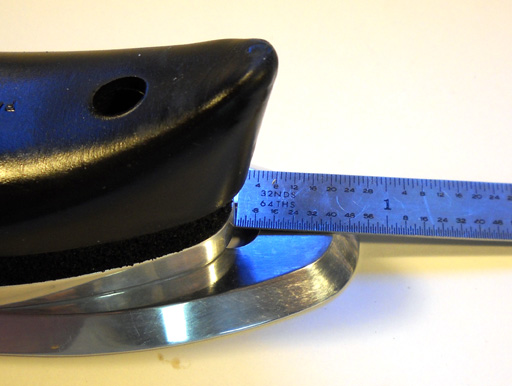

Drop. |
|
Again, about 3/4" drop. |
|
Rise. |
|
Again, about 5/8" Rise. |
|
Notice that the #14 Premium Curved Recoil Pad does not have steps as the plastic one does, so it is infinitely adjustable. The old style aluminum plate did have steps like the plastic one. |
